Equipping commercial integrators with the industry’s most innovative signal extension solutions, Nortek Security & Control (NSC) has announced that it is now shipping two new Gefen® 4K Ultra HD Multi-Format 2×1 HDBaseT™ Senders (EXT-UHDV-WP-HBTLS-TX and EXT-UHDV-HBTLS-TX) and a 4K Ultra HD HDBaseT™ Receiver (EXT-UHDA-HBTL-RX).

“Gefen builds compelling and easy-to-install solutions that make signal extension effortless for professional installers while enhancing the performance and utility of any AV installation for the end-user,” said Nortek Security & Control Gefen product director Ara Gharapetian. “These Multi-Format senders and their matching receiver facilitate high performance signal extension from 4K HDMI and VGA sources, two of the most popular video formats for presentation devices. This Multi-Format input capability, along with automatic source switching, is perfect for collaboration environments in higher education and corporate facilities.”

The EXT-UHDV-WP-HBTLS-TX features the popular Decora® wall-plate form factor that can be installed in-wall and blend well with the décor of a venue. The EXT-UHDV-HBTLS-TX is a high-performance solution in a compact, easy-to-install enclosure that can be surface-mounted or placed on a shelf.

Both Senders can accept 4K Ultra HD HDMI and VGA sources and extend them up to 70 meters (230 feet) at 1080p and 40 meters (130 feet) at 4K over a single CAT-5e cable. Switching between the HDMI and VGA can be set to Automatic or be done manually via the front panel button or RS-232.

The HDBaseT™ extension system supports 10.2 Gbps of data throughput and 300 MHz TMDS Clock frequency. Resolution/timing can be up to 4K 60 Hz 4:2:0 on the wall-plate and 4K 30 Hz 4:4:4 on the table-top model.

Both Senders use the Gefen implementation of the HDBaseT™ technology with enhancements including Advanced EDID Management. Highest performance multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ are passed through from the HDMI input to output.

The VGA input features a companion L/R analogue audio input and accepts VESA and CEA resolutions up to WUXGA (1920 x 1200 to 60 Hz, 4:4:4) and 1080p Full HD (1920 x 1080 at 60 Hz, 4:4:4).

The HDMI input on the EXT-UHDV-HBTLS-TX supports 18 Gbps of data and 600 MHz TMDS Clock frequency, accepting full spec HDMI 2.0 to 4K Ultra HD (3860 x 2160) and 4K Cinema-DCI (4096 x 2160), at 60 Hz 4:4:4.

A powerful built-in scaler on each sender can upscale lower resolution VGA signals with legacy aspect ratio to widescreen WUXGA, ensuring stunning presentations and smooth switching transitions between the HDMI and the VGA sources.

While the wall-plate sender extends bi-directional RS-232, the EXT-UHDV-HBTLS-TX extends both RS-232 and 2-way IR, facilitating the control of A/V sources placed near the Sender from the viewing location, and sending commands from the head end to control the display or another device placed near the Receiver unit. Both Senders also accept RS-232 commands for switching, scaler controls, and EDID management from a third-party controller placed near the Sender or remotely by the Receiver.

Audio volume on the EXT-UHDV-HBTLS-TX can be adjusted or muted via the front panel buttons or RS-232 commands from a third-party controller, a very useful tool for presentations in corporate, educational, and institutional installations.

Each sender features a professional API, designed to maximise control and feedback when used with third-party automation devices.

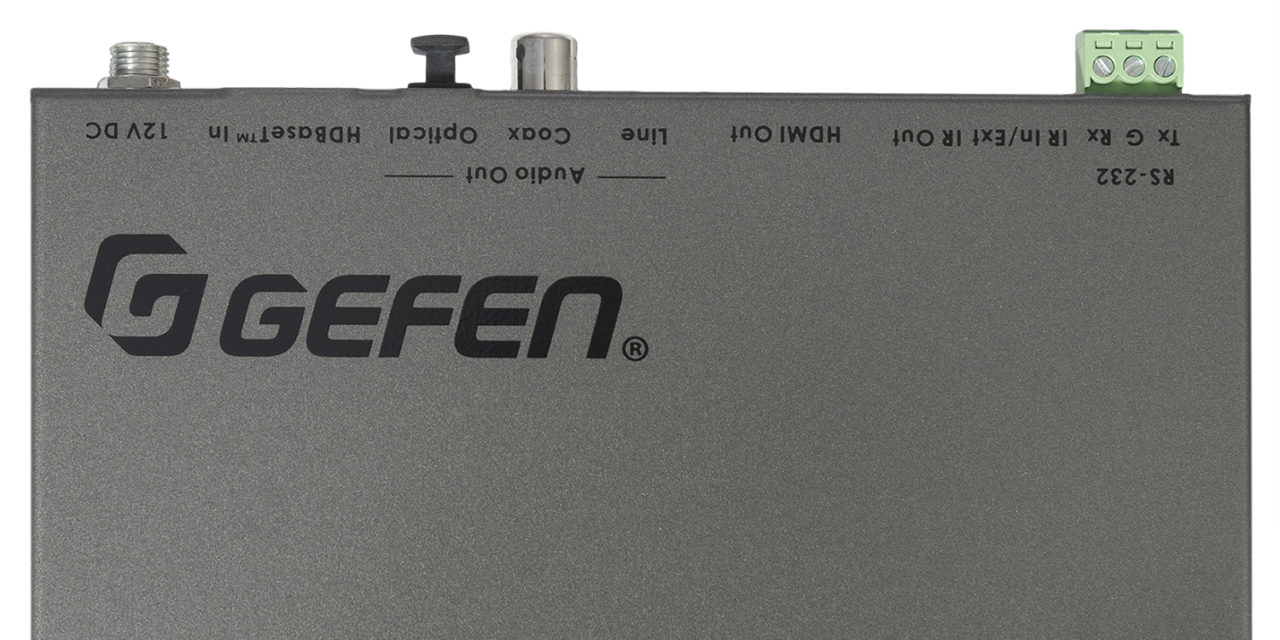

The Gefen EXT-UHDA-HBTL-RX is a high-performance HDBaseT™ Receiver that has been designed to work with these two sender units. It de-embeds analogue L/R, TOSLINK® optical digital, and coaxial digital audio from the video for use with a separate audio system, enhancing the impact of presentations.

The standard PoH (Power over HDBaseT) technology enabled on these products can supply power remotely from the EXT-UHDA-HBTL-RX to the senders, using the same CAT-5 cable that extends the HDMI signal. The table-top sender can also power the receiver.

The receiver unit features an ultra-low-profile enclosure that, thanks to its IR Extender input, can be completely hidden away behind the display and surface-mounted as need be.

All three products have been designed to work with Gefen Syner-G™ software, creating endless possibilities in product configuration as well as in-field firmware updates.
